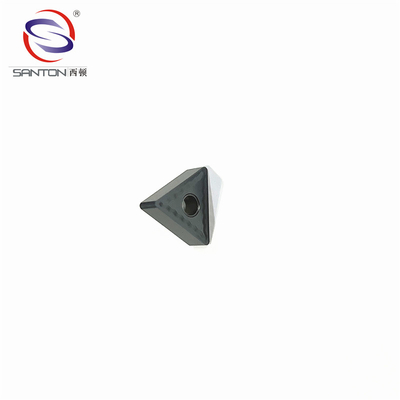

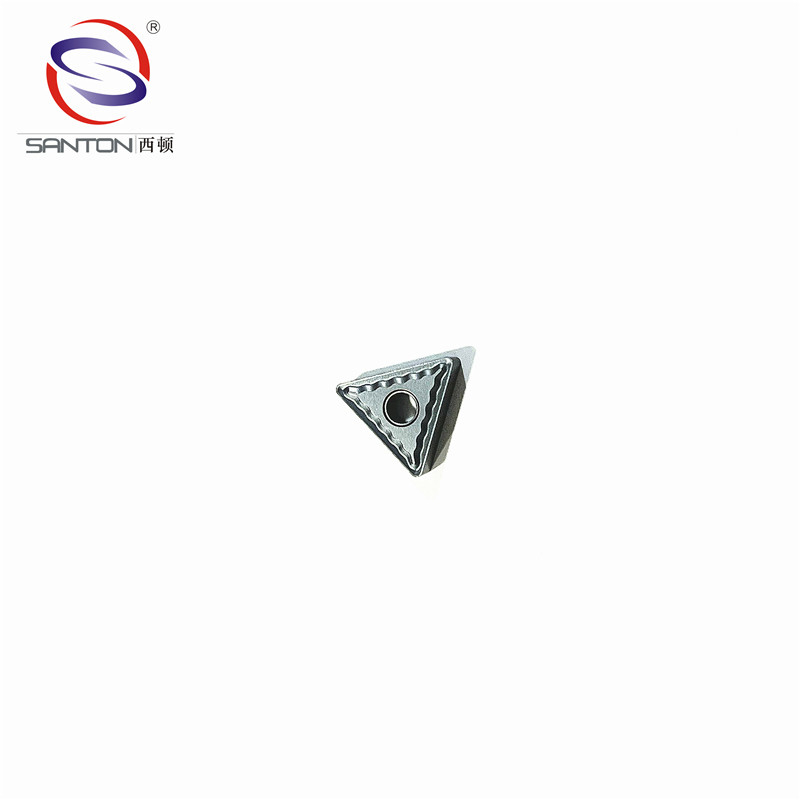

TNMG All Kind Of P Class M Class K Class CNC W-Co-Ti Alloys Carbide Inserts
Product Information:
Carbide cutting tool carbide blade cutting performance is excellent, is widely used in CNC turning. Carbide inserts are available
The standards are divided into three categories :P category M category K category. Class
P - suitable for processing steel, long chip malleable cast iron (equivalent to China YT class).
M class - suitable for processing austenitic stainless steel, cast iron, high manganese steel, Taiwan gold cast iron, etc. (equivalent to our country
Class YW).
K - suitable for processing cast iron, cold cast iron, short Chip malleable cast iron, non-titanium alloy (equivalent to China's YG class).
What is the difference between TNMG and TCMT
Blade Angle is different. TN has no back Angle suitable for processing cast iron, steel and other materials, TC has back Angle suitable for processing non-ferrous metals, aluminum alloy, copper alloy, etc
Grade & Application:
| Santon Grade | ISO Grade | ANSI Grade | Physical and Chemical Property | Performance & Applications | ||
| Density | TRS | Hardness | ||||
| g/cm3 | n/mm2 | HRA | ||||
| YT5 | P30 | C5 | 12.9 | 2200 | 90.5 | Best strength, high impact and shock resistance among W-Co-Ti alloys, but comparatively lower wear resistance. Suitable for rough turning, rough planning, and semi-finish planning of carbon steel, and alloy steel including forgings, stamped parts, and cast iron surfaces during intermittent cutting. |
| YW2 | M20 | _ | 12.9 | 1880 | 91 | Higher wear resistance and strength, resistant to high impact load. Suitable for roughing and semi-finishing of ordinary steel, and cast irons as well as refractory steel, high manganese steel, and high-grade alloy steel, etc |
| YG6X | K15 | C3 | 14.9 | 1890 | 91.5 | Fine grain WC alloy, wear resistance higher than YG6, strength close to YG6. Suitable for machining chilled alloy cast irons, and refractory alloy steel, as well as finishing of ordinary cast irons. |
Certifications:
Company information:
Santon alloy is a focus on the carbide cutting blades research and development, production, sales in the integration of high and new technology and new materials enterprises, the company's main products are made with the blade, nc blades, PCD/CBN matrix and aluminum processing blade four series, can provide users with rich technology content and the application value of the pre-sale, sale and after-sale service. The vertical blade series products are the core products of the company's strategic development, positioning as "high-end, alternative to import".
Santon specializes in manufacturing a wide array of cemented carbide blades, inserts, knives for woodwoking tools, wood cutters in wear and impact resistant grades, greatly prolonged the cutter life over their steel counterparts.
FAQ
Q. Are you a manufacturer or a trading company?
A. We are a professional manufacturer with 10 years of experience of producing and selling carbiede inserts.
Q. What is your main products?
A. Our main products includes cemented carbide plates, strips, blanks, saw tips, geological and mining bits, brazed tips, indexable carbide inserts, wear parts,snow plow inserts, tungsten carbide pins, etc.
Q. what's the payment term?
A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or against copy of BL, or L/C at sight.
Q. What about your delivery time?
A. Usually it will take about 25 - 30 days for production.But for new molds, the lead time may need 10days more to open molds. If you need the goods urgently, we could try to push for and shorten the delivery time.
Q. What is your minimum order quantity(MOQ)?
A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded later.
Q. What is your warranty?
A. We extend a 100% satisfaction guarantee on all items. if you’re not completely satisfied with our products ,we’ll replace them or refund the fee
Q. Where is your market?
A. Our products are popular in Germany, America, Mexico, India, Russia, Indonesia, Malaysia, Bangladesh, South Africa,etc.
|
